Digi CORE® plug-in LTE modem

Modular LTE connectivity with Carrier Smart Select and dual SIM support across major carriers for optimal mobile network access


  • Certified with major cellular carriers
  • Scalable throughput with multiple module types:
    • LTE-Advanced Cat 6, 7, 11 and LTE-Advanced Pro Cat 18
    • LTE Cat 4 with 3G / 2G fallback on select modules
    • LTE Cat M1 / NB1 with 2G fallback (EGPRS)
  • FirstNet Ready™ devices for critical communication
  • Dual SIM slots with automatic or manual swapping
  • Carrier Smart Select™ for optimal connectivity
  • Readily upgrade to meet changing cellular standards
  • Tamper-proof optional locking mechanism
  • External SMA connectors for custom antenna runs
How to Buy

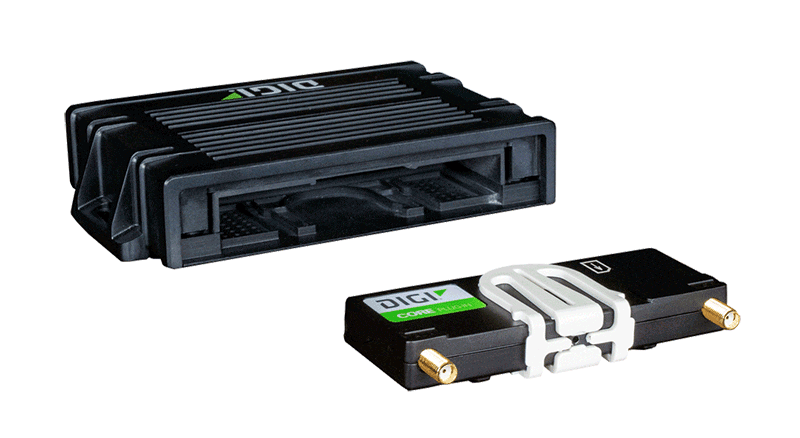

Stay connected with Digi CORE® plug-in LTE modems for LTE, LTE-Advanced and LTE-Advanced Pro connectivity across major cellular networks. The modular design integrates with a range of Digi high-performance routers and infrastructure devices, including Digi EX15, Digi IX20, Digi 6310-DX, Digi 6330-MX, Digi 6350-SR, Digi Connect® IT 4 and Digi AnywhereUSB® Plus.

With Digi CORE plug-in LTE modems, enabled Digi devices can connect to mobile networks using the LTE standard that best suits each use case. Larger locations or data-intensive applications can utilize the LTE-Advanced Cat 6, 7, 11 and LTE-Advanced Pro Cat 18 versions of the Digi CORE plug-in modem to take advantage of faster speeds and carrier aggregation.

FirstNet Ready™ devices provide additional support for critical priority responder communication. Applications with less intensive needs can opt for the cost-saving deployment of a standard LTE Cat 4 connection. Select the router and modem that best fit current and future connectivity needs with the ability to upgrade devices rather than replacing them.

Digi Remote Manager® is a secure cloud-based device management solution that provides remote monitoring and control of Digi enterprise routers and gateways after deployment. It enables easy setup, configuration and support for installations of Digi devices.

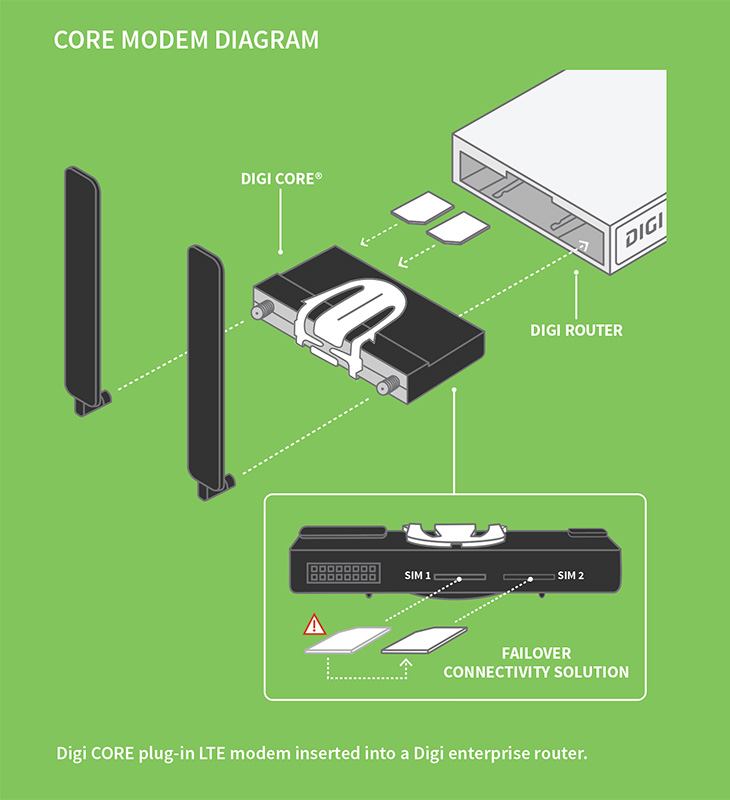

Upgrade with swappable plug-In LTE modems and dual SIM support

A suite of Digi CORE plug-in LTE modems allows customers to select the cellular connection that best meets their speed, budget, fallback-network and geographic requirements. As new LTE technologies become available Digi will launch additional versions of Digi CORE plug-in LTE modems, which may be available for use in Digi EX15, Digi IX20, Digi 6350-SR, Digi 6330-MX, Digi 6310-DX, Digi Connect IT 4, Digi AnywhereUSB Plus and future products. The modular nature of Digi CORE plug-in modems helps mitigate technological obsolescence by allowing customers to upgrade to newer LTE standards without replacing their Digi router.

Accelerate your LTE connection without replacing your router

Accelerate Your LTE Connection without Replacing Your RouterDigi CORE plug-in LTE modems are a best-in-class solution that can future-proof network infrastructure thanks to the modular nature, combined with the stateful firewall and VPN capabilities of Digi enterprise routers and infrastructure devices. Ensure maximum uptime and performance with the flexibility to deploy LTE connections where you need quick, easy, reliable internet access.

Featured Models
1002-CMM1-GLB Digi CORE plug-In LTE modem; LTE / M1 / NB1, 2G fallback
1002-CMM1-GLB HOW TO BUY
Contact Us
ASB-1002-CM04-OUS Digi CORE plug-In LTE modem; LTE / HSPA+ Cat 4, 3G fallback
  • LTE Cat 4 with 3G fallback
  • Commercial temperature: 0° C to 40° C (32° F to 104° F)
  • Cellular certifications: PTCRB, AT&T, Verizon, Canada
ASB-1002-CM04-OUS HOW TO BUY
Contact Us
ASB-1002-CME4-GLB Digi CORE plug-In LTE modem; LTE / HSPA+ Cat 4, 3G / 2G fallback
  • LTE Cat 4 with 3G / 2G fallback
  • Commercial temperature: 0° C to 40° C (32° F to 104° F)
  • Cellular certifications: PTCRB, RED, Europe
ASB-1002-CME4-GLB HOW TO BUY
Contact Us
1002-CMF4-OUS Digi CORE plug-In LTE modem; FirstNet Ready LTE / HSPA+ Cat 4, 3G fallback
1002-CMF4-OUS HOW TO BUY
Contact Us
1002-CMG4-GLB Digi CORE plug-In LTE modem; Global LTE Cat 4, 3G / 2G fallback
1002-CMG4-GLB HOW TO BUY
Contact Us
ASB-1002-CM06-GLB Digi CORE plug-In LTE modem; LTE-A / HSPA+ Cat 6, 3G fallback
  • LTE-Advanced Cat 6 with 3G fallback (Global excluding AU, NZ, JP and KR)
  • Commercial temperature: 0° C to 40° C (32° F to 104° F)
  • Cellular certifications: PTCRB, RED, AT&T, Verizon, Canada, Europe
ASB-1002-CM06-GLB HOW TO BUY
Contact Us
ASB-1002-CM16-GLB Digi CORE plug-In LTE modem; LTE-A / HSPA+ Cat 6, 3G fallback
  • LTE-Advanced Cat 6 with 3G fallback (APAC)
  • Commercial temperature: 0° C to 40° C (32° F to 104° F)
  • Cellular certifications: Australia / New Zealand
ASB-1002-CM16-GLB HOW TO BUY
Contact Us

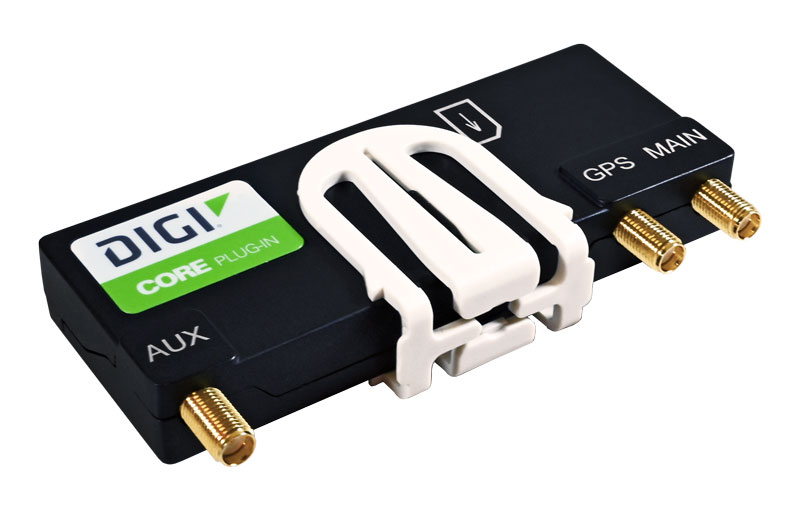

1003-CM07-OUS Digi CORE plug-In LTE modem; LTE-A / HSPA+ Cat 7, 3G fallback
  • LTE-Advanced Cat 7 with 3G fallback (North America)
  • GNSS/GPS
  • Industrial temperature: -40° C to 70° C (-40° F to 158° F)
  • Cellular certifications: PTCRB, AT&T, Verizon, T-Mobile (pending)
1003-CM07-OUS HOW TO BUY
Contact Us
ASB-1003-CM11-GLB Digi CORE plug-In LTE modem; LTE-A / HSPA+ Cat 11, 3G fallback
  • LTE-Advanced Cat 11 with 3G fallback (Global)
  • Commercial temperature: 0° C to 40° C (32° F to 104° F)
  • Cellular certifications: PTCRB, RED, AT&T, Verizon, Canada, Europe
ASB-1003-CM11-GLB HOW TO BUY
Contact Us

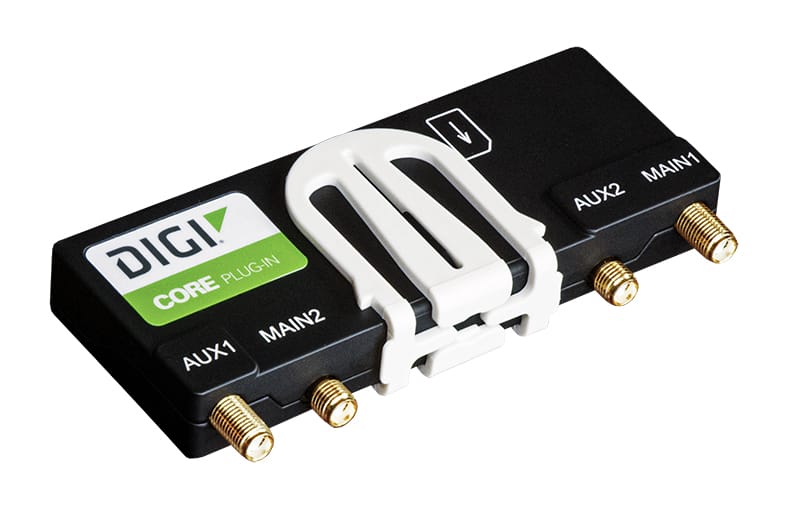

1003-CM18-GLB Digi CORE plug-In LTE modem; FirstNet Ready LTE-A Pro / HSPA+ Cat 18
  • LTE-Advanced Pro Cat 18 (Global)
  • Commercial temperature: 0° C to 40° C (32° F to 104° F)
  • Cellular certifications: PTCRB, RED, AT&T, T-Mobile, Verizon, US, Canada, Europe
1003-CM18-GLB HOW TO BUY
Contact Us
SPECIFICATIONS DIGI CORE PLUG-IN LTE MODEM
SOFTWARE
REMOTE MANAGEMENT Digi Remote Manager®
PROTOCOLS USB 2.0 / 3.0 (CM module’s interface), UMTS, EVDO, HSPA+, LTE, LTE-A, LTE-A Pro (supported cellular protocols vary by module type)
SECURITY Tamper-proof with internal SIM slots and optional locking mechanism
PHYSICAL
DIMENSIONS (L x W x H) 102 mm x 51 mm x 15 mm (4.0 in x 2.0 in x 0.6 in)
WEIGHT 0.156 kg (5.5 oz)
ENVIRONMENTAL
OPERATING TEMPERATURE Commercial temperature: 0° C to 40° C (32° F to 104° F)
Industrial temperature: -40° C to 70° C (-40° F to 158° F)
STORAGE TEMP AND HUMIDITY -45° C to 75° C (-49° F to 167° F); 5% to 95% non-condensing
APPROVALS
EMISSIONS / IMMUNITY FCC Part 15, Subpart B, Class A; CE, RCM; CAN ICES-3(B)/NMB-3(B)
CELLULAR SPECIFICATIONS
CELLULAR ANTENNA (1, 2, 3 or 4) Dipole; frequency: 700-960/1575-2700 hz; gain: 1-4 dBi
SIM (2) SIM card slot (size 2FF), software selectable and hardware switchable
DIGI CORE PLUG-IN LTE MODEM*
DIGI CORE 1002-CMM1 (GLOBAL) LTE Cat M1 / NB1; LTE Bands: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B26, B28; 2G (EGPRS): 850 / 900 / 1800 / 1900 MHz; Transfer rate (max): M1: 300 kbps down, 375 kbps up; NB1: 21 kbps down, 62.5 kbps up; 2G: 296 kbps down, 236 kbps up; Industrial temperature
DIGI CORE 1002-CM04 (NORTH AMERICA) LTE Cat 4; LTE Bands: B2, B4, B5, B12, B13; 3G: B2, B5; Transfer rate (max): 150 Mbps down, 50 Mbps up; Commercial temperature
DIGI CORE 1002-CME4 (EMEA) LTE Cat 4; LTE Bands: B1, B3, B7, B8, B20; 3G: B1, B8; 2G: B3, B8; Transfer rate (max): 150 Mbps down, 50 Mbps up; Commercial temperature
DIGI CORE 1002-CMF4 (NORTH AMERICA) LTE Cat 4; LTE Bands: B2, B4, B5, B12, B13, B14  - FirstNet®, B66, B71; 3G: B2, B4, B5; Transfer rate (max): 150 Mbps down, 50 Mbps up; Industrial temperature
DIGI CORE 1002-CMG4 (GLOBAL) LTE Cat 4; LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B39, B40, B41; 3G: B1, B2, B4, B5, B6, B8, B19; 2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz; Transfer rate (max): 150 Mbps down, 50 Mbps up; Industrial temperature
DIGI CORE 1002-CM06 (GLOBAL EXCLUDING AU, NZ, JP AND KR) LTE-Advanced Cat 6; LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41; 3G WCDMA: B1, B2, B3, B4, B5, B8; Transfer rate (max): 300 Mbps down, 50 Mbps up; Commercial temperature
DIGI CORE 1002-CM16 (APAC) LTE-Advanced Cat 6; LTE Bands: B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41; 3G WCDMA: B1, B5, B6, B8, B9, B19; TD-SCDMA: B39; Transfer rate (max): 300 Mbps down, 50 Mbps up; Commercial temperature
DIGI CORE 1003-CM07 (NORTH AMERICA) LTE-Advanced Cat 7; LTE Bands: B2, B4, B5, B7, B12, B13, B25, B26, B41, B42, B43, B48, B66, B71; 3G: B2, B5; Transfer rate (max): 300 Mbps down, 150 Mbps up; GNSS/GPS; Industrial temperature
DIGI CORE 1003-CM11 (GLOBAL) LTE-Advanced Cat 11; LTE FDD Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B20, B25, B26, B28, B29, B30, B66; LTE TDD: B38, B40, B41; 3G: B1, B2, B4, B5, B8; Transfer rate (max): 600 Mbps down, 75 Mbps up; Commercial temperature
DIGI CORE 1003-CM18 (GLOBAL) LTE-Advanced Pro Cat 18; LTE FDD Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 - FirstNet®, B20, B25, B26, B28, B29, B30, B32, B66, B71; LTE TDD: B38, B39, B40, B41, B42, B43, B46, B48; 3G: B1, B2, B4, B5, B8, B9, B19; Transfer rate (max): 1.2 Gbps down, 150 Mbps up; Commercial temperature
WARRANTY
PRODUCT WARRANTY 3-year
* Transfer rates are network operator dependent.
