RF Modules | Wireless Connectivity Solutions for Remote, Low-power, Secure IoT Product Designs

Digi XBee 3 Zigbee 3 RF Module

Easy-to-add connectivity in a compact, low-power, low-profile footprint

At 13 mm x 19 mm, the new Digi XBee® 3 micro form factor allows for more compact and portable applications
Digi XBee 3 is one module for all protocols including: Zigbee, 802.15.4, DigiMesh® and BLE, all configurable via Digi XCTU®
Eliminate the need for an external microcontroller and create smart end nodes using MicroPython
Bluetooth® Low Energy for beaconing, connecting to Bluetooth sensors and local configuration using the Digi XBee Mobile app
Intrinsic IoT security with Digi TrustFence®, a layered approach securing the edge device, through the gateway, into and out of the IoT

Add to compare

Digi XBee 3 802.15.4 RF Module

Low-cost, easy-to-deploy modules for critical end-point device and sensor connectivity

At 13 mm x 19 mm, the new Digi XBee® 3 micro form factor allows for more compact and portable applications
Digi XBee 3 is one module for all protocols including: Zigbee, 802.15.4, DigiMesh®, and BLE, all configurable via Digi XCTU®
Eliminate the need for an external microcontroller and create smart end nodes using MicroPython
Bluetooth® Low Energy for beaconing, connecting to Bluetooth sensors and local configuration using the Digi XBee Mobile app
Intrinsic IoT security with Digi TrustFence®, a layered approach securing the edge device, through the gateway, into and out of the IoT

Add to compare

Digi XBee 3 DigiMesh 2.4 RF Module

Wireless connectivity using the innovative and easy-to-deploy DigiMesh® protocol

At 13 mm x 19 mm, the new Digi XBee® 3 micro form factor allows for more compact and portable applications
Digi XBee 3 is one module for all protocols including: Zigbee, 802.15.4, DigiMesh®, and BLE, all configurable via Digi XCTU®
Eliminate the need for an external microcontroller and create smart end nodes using MicroPython
Bluetooth® Low Energy for beaconing, connecting to Bluetooth sensors and local configuration using the Digi XBee Mobile app
Intrinsic IoT security with Digi TrustFence®, a layered approach securing the edge device, through the gateway, into and out of the IoT

Add to compare

Digi XBee Wi-Fi

OEM Module with Fully Integrated Support for Digi Remote Manager

NRND

Build cloud-connected Wi-Fi prototypes in under an hour
Popular XBee Through-Hole and Surface-Mount footprints
Ideal for Industrial Applications that require fast time to market
Easily connect to a smartphone or tablet for configuration or data transfer
802.11b/g/n provides up to 72 Mbps data rate

Add to compare

Digi XBee Zigbee

Embedded ZigBee modules provide OEMs with a simple way to integrate mesh technology into their application

NRND

Programmable versions with on-board microprocessor enable custom Zigbee application development
Through-Hole and Surface Mount form factors enable flexible design options
Link budgets of 110 dB for XBee and 119 dB for XBee-PRO
Industry-leading sleep current
Firmware upgrades via UART, SPI or over the air (OTA)
Turnkey development available from Digi WDS

Add to compare

Digi XBee 802.15.4

Low-cost, easy-to-deploy RF modules provide critical end-point connectivity to devices and sensors

NRND

Simple, out-of-the-box RF communications, no configuration needed
Point-to-multipoint network topology
2.4 GHz for worldwide deployment
Common XBee footprint for a variety of RF modules
Industry leading sleep current of sub 1uA
Firmware upgrades via UART, SPI or over the air
Migratable to DigiMesh and Zigbee PRO protocols and vice-versa
Turnkey development available from Digi WDS

Add to compare

Digi XBee<span>®</span> DigiMesh<span>®</span> 2.4

Digi XBee DigiMesh 2.4

Wireless Mesh Networking RF Module

NRND

No configuration needed for out-of-the-box RF communications
Common Digi XBee footprint for a variety of RF modules
Simple topology to deploy and grow
2.4 GHz for worldwide deployment
Low-power Digi XBee or extended-range XBee-PRO (pin/over-the-air compatible)
Multiple antenna options
Outdoor RF line-of-sight range up to 2 miles (3.2 km)* with high-gain antennas
DigiMesh® peer-to-peer mesh networking protocol

Add to compare

Digi XBee-PRO Zigbee

Embedded Zigbee modules provide OEMs with a simple way to integrate mesh technology into their application

Surface mount form factors enable flexible design options
Link budgets of 110 dB for Digi XBee® and 119 dB for Digi XBee-PRO®
Industry-leading sleep current
Firmware upgrades via UART, SPI or over the air (OTA)
Turnkey development available from Digi WDS

Add to compare

Digi XBee-PRO DigiMesh

Embedded DigiMesh modules provide OEMs with a simple way to integrate mesh technology into their application

Surface mount form factors enable flexible design options
Link budgets of 110 dB for Digi XBee® and 119 dB for Digi XBee-PRO®
Industry-leading sleep current
Firmware upgrades via UART, SPI or over the air (OTA)
Turnkey development available from Digi WDS

Add to compare

Digi XBee SX 868 RF Module

RF module family operates in the 863-870 MHz range delivering superior performance and interference immunity at 868 MHz

Low-power CE/RED certified 868 MHz RF module based on Silabs EFM32 and ADI7023
Design includes SAW filter for optimal performance in noisy RF environments
OTA and pin compatible with legacy Digi XBee® 868LP
Listen-Before-Talk and Frequency Agility for optimal interference immunity
DigiMesh® networking topology for redundancy and reliability
Simple configuration using XCTU® accelerates time to market

Add to compare

Digi XBee SX 900 RF Module

900 MHz OEM RF modules pack maximum power, security, and flexibility into the Digi XBee SMT footprint for mission-critical wireless designs

Family includes powerful 1-Watt 900 MHz Digi XBee-PRO SX 900 and battery-optimized 20 mW Digi XBee SX 900 modules for mission-critical OEM designs
DigiMesh networking topology for redundancy and reliability
Design includes SAW filter for optimal performance in noisy RF environments
256-bit AES encryption for secure data communications
Digi XBee SMT form factor saves valuable PCB space
Fully certified for use in unlicensed 900 MHz band

Add to compare

Digi XBee-PRO 900HP RF Module

Long Range 900 MHz OEM RF Module

Superior LOS range of up to 28 miles* with high-gain antenna
Simplified AT command set and advanced XBee API
Over-the-air firmware updates
Software-selectable channel mask for interference immunity
Advanced sleep modes: sleeping routers, pin sleep, cyclic sleep
Try these modules out with a XBee-PRO 900HP DigiMesh Kit

Add to compare

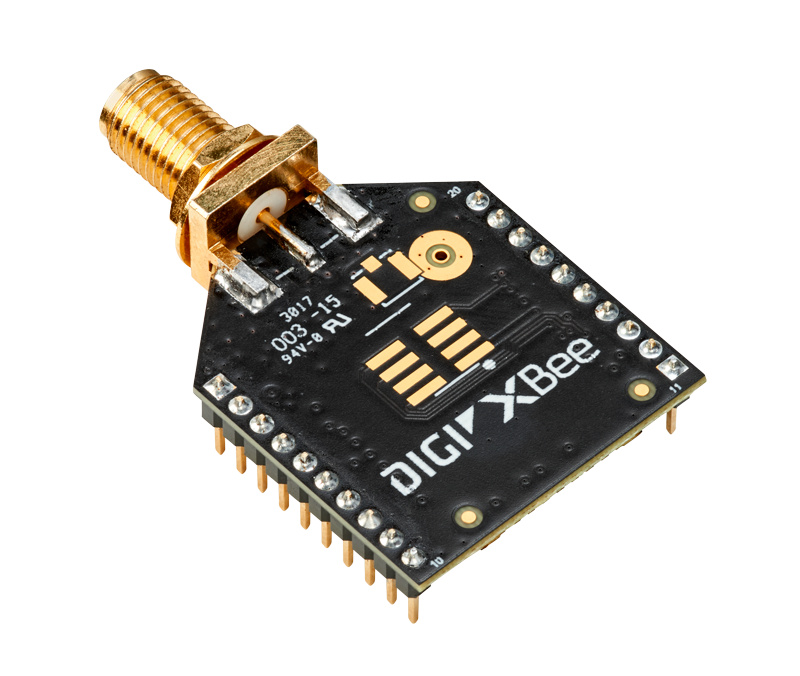

Digi XBee-PRO XSC

900 MHz Long-Range RF Module

NRND

For new designs that do not require interoperability with 9XStream radios, see XBee-PRO 900HP
Over-the-air compatibility with legacy 9XStream products
20 times less current draw than previous XSC module
Superior outdoor LOS range of up to 28 miles*

Add to compare
