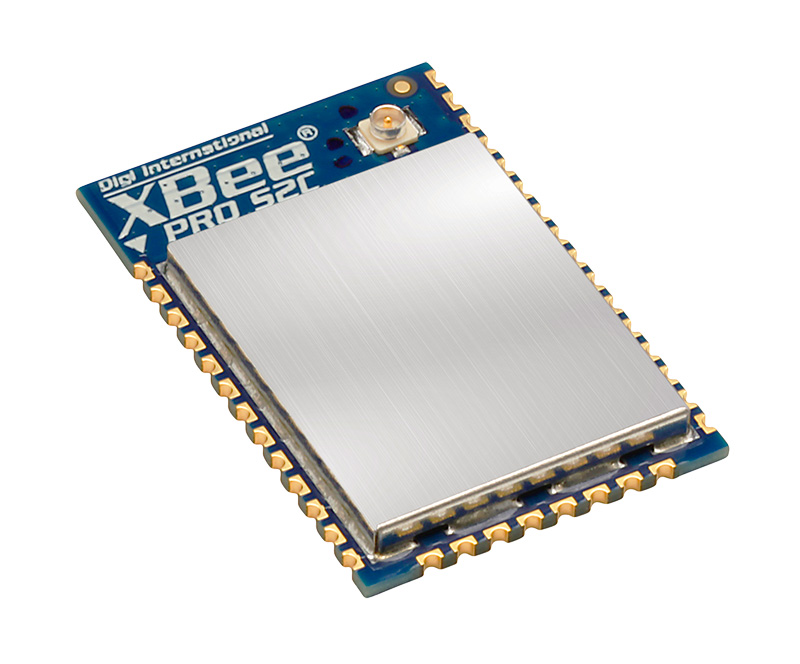

Digi XBee-PRO DigiMesh

Embedded DigiMesh modules provide OEMs with a simple way to integrate mesh technology into their application


  • Surface mount form factors enable flexible design options
  • Link budgets of 110 dB for Digi XBee® and 119 dB for Digi XBee-PRO®
  • Industry-leading sleep current
  • Firmware upgrades via UART, SPI or over the air (OTA)
  • Turnkey development available from Digi WDS
How to Buy

Digi XBee-PRO DigiMesh® RF modules provide cost-effective wireless connectivity to electronic devices. They are interoperable with other DigiMesh feature set devices, including devices from other vendors.

Digi XBee-PRO DigiMesh modules are ideal for applications in the energy and controls markets where manufacturing efficiencies are critical.

The Serial Peripheral Interface (SPI) provides a high-speed interface and optimizes integration with embedded microcontrollers, lowering development costs and reducing time to market.

Digi’s DigiMesh compatible module uses a Silicon Labs EM357 SoC with a 32-bit ARM® Cortex  M3 processor.

Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools
RF Support Services

RF Support Services from Digi

On-site services and support for RF solution implementation including site survey, integration, training and troubleshooting.

LEARN MORE
SPECIFICATIONS Digi XBee-PRO DigiMesh
PERFORMANCE
TRANSCEIVER CHIPSET Silicon Labs EM357 SoC
DATA RATE RF 250 Kbps, Serial up to 1 Mbps
INDOOR/URBAN RANGE* Up to 90 m (300 ft)
OUTDOOR/RF LINE-OF-SIGHT RANGE* Up to 3200 m (2 miles)
TRANSMIT POWER 63 mW (+18 dBm)
RECEIVER SENSITIVITY (1% PER) -101 dBm
FEATURES
SERIAL DATA INTERFACE UART, SPI
CONFIGURATION METHOD API or AT commands, local or over-the-air (OTA)
FREQUENCY BAND ISM 2.4 GHz
FORM FACTOR Surface mount
INTERFERENCE IMMUNITY DSSS (Direct Sequence Spread Spectrum)
ADC INPUTS (4) 10-bit ADC inputs
DIGITAL I/O 18,  no RSSI PWM
ANTENNA OPTIONS SMT: RF pad, PCB antenna, or U.FL connector
OPERATING TEMPERATURE -40º C to 85º C (-40º F to 185º F)
DIMENSIONS (L X W X H) AND WEIGHT SMT: 2.199 x 3.4 x 0.305 cm (0.866 x 1.33 x 0.120 in)
NETWORKING AND SECURITY
PROTOCOL Digi XBee DigiMesh® 2.4 (proprietary 802.15.4 based mesh protocol)
ENCRYPTION 128-bit AES
RELIABLE PACKET DELIVERY Retries/acknowledgements
IDS PAN ID and addresses, cluster IDs and endpoints (optional)
CHANNELS 15 channels
POWER REQUIREMENTS
SUPPLY VOLTAGE 2.7 to 3.6V
TRANSMIT CURRENT 115 mA at 3.3 VDC
RECEIVE CURRENT 34 mA at 3.3 VDC
POWER-DOWN CURRENT <1 μA at 25º C (77º F)
REGULATORY APPROVALS
FCC, IC (NORTH AMERICA) Yes
ETSI (EUROPE) No
RCM (AUSTRALIA AND NEW ZEALAND) No
*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
